How to Match Tractor Horsepower to Field Condition and Load

Prerequisites: Gather the Numbers Before You Choose

Before sizing an engine, collect three sets of data. First, the implement’s rated drawbar pull and PTO demand. Second, the expected field condition. Third, the operating speed you need to meet your seasonal deadline. Without these, any horsepower number is a guess.

Use the implement’s technical sheet, not the box art. Drawbar pull is measured in kilonewtons or horsepower at a specific speed. PTO demand is the torque the implement requires at its rated speed. Record both. If the implement has multiple modes, use the heaviest one you plan to run. A seed drill with a heavy metering unit will draw more torque than the same unit running in a light seeding mode. Check the torque in newton-meters or feet-pounds and note the PTO speed required.

Field condition is not a single number. It is a combination of soil type, moisture, residue, and compaction. A sandy field at field capacity behaves differently from a clay field after rain. You need to identify which condition your tractor will face most often. Write down the soil type you encounter most, the typical moisture level at the start of the season, and the amount of previous year crop residue that will be on the surface. These variables change the resistance the implement faces with every pass.

Step 1: Determine the Implement’s Static Drawbar Pull

The implement’s static drawbar pull is the force it resists when stationary or moving slowly. This is the baseline power the engine must overcome. For a typical tillage implement, this value sits in a predictable range based on working width. A narrow implement requires less pull than a wide one.

Check the manufacturer’s chart. It usually lists pull at a reference speed, often around 15 to 20 kilometers per hour. If your target speed is higher, the required pull decreases. If lower, it increases. Adjust the baseline accordingly. For example, if a 4-meter tiller lists 50 kilonewtons at 15 kilometers per hour, and you plan to run at 12 kilometers per hour, the resistance will be higher. The chart might show 60 kilonewtons at that lower speed. Use the specific value for your planned speed, not the average.

Do not confuse drawbar pull with hitch force. Drawbar pull is the force applied at the hitch point to pull the implement through the soil. It is the primary load the tractor engine must overcome. The implement’s technical sheet often provides a graph or a table of drawbar pull against speed. Use that table. If only a single number is given, assume it is at the reference speed and adjust manually if your target speed differs significantly.

Step 2: Adjust for Field Condition

Field condition adds a multiplier to the static pull. Loose, dry soil requires less resistance than wet, heavy clay. Compaction and residue increase the load further. A general rule of thumb is that difficult conditions can double or triple the static pull.

Do not use the best-case scenario. If your field is clay and you are working after rain, assume the worst realistic condition. This prevents the common mistake of buying a tractor that stalls in the first pass. If you can improve field conditions through drainage or tillage timing, you can reduce the required power, but do not rely on that for the calculation.

Consider the residue load specifically. A field with standing corn stalks or wheat stubble will present more resistance than a clean field. The implement must cut through the residue in addition to working the soil. If you are using a no-till drill or a shallow cultivator, the residue load can be the dominant factor. Check if the implement’s drawbar pull rating includes a residue allowance. If it does not, add a margin for the extra cutting resistance.

Step 3: Add PTO and Hydraulic Demands

Many implements draw power through the PTO, not just the drawbar. A rotary tiller, for example, uses a large portion of the engine’s torque to spin the blades. A combine’s grain tank unloading also draws on the PTO.

Look at the implement’s PTO torque requirement. Convert it to horsepower if needed. Add this to your drawbar figure. A tractor rated at a certain horsepower at the drawbar may have significantly less available at the PTO due to drivetrain losses and engine speed curves. Check the engine curve, not just the single number on the spec sheet.

Hydraulic demands are often overlooked. Some implements, such as a hydraulic breaker or a heavy-duty spreader, draw significant power from the hydraulic pump. This power comes from the engine, reducing the power available for drawbar pull. If the implement uses a high-flow hydraulic pump, check the engine’s hydraulic power rating at the PTO speed. This is usually lower than the peak horsepower. Add the hydraulic power demand to the PTO torque demand to find the total auxiliary power required.

Step 4: Account for Terrain and Grade

Slopes add to the load. Even a few percent grade increases the force the engine must overcome. On a slope, the implement’s effective drawbar pull rises. If your field is mostly flat, ignore this. If you work on contour or have rolling terrain, add a margin.

A 5 percent grade can add a noticeable amount to the required power. For large, flat fields, the effect is minimal. For small, hilly plots, it is significant. Use the maximum grade you expect to encounter. Do not assume you can avoid slopes by choosing a different pass direction.

Calculate the grade load separately. The force of gravity acting on the tractor and implement mass, multiplied by the sine of the grade angle, must be added to the drawbar pull. For a 10-ton tractor and a 5-ton implement, a 10 percent grade adds a substantial load. If you are pulling uphill, this load is added to the drawbar resistance. If you are pulling downhill, the engine must manage the speed, and the drawbar pull may decrease, but the load on the brakes and transmission increases. Size for the uphill case.

Step 5: Factor in Operating Speed

Power demand changes with speed. At a fixed drawbar pull, higher speed requires more horsepower. The implement’s resistance may drop slightly as speed increases, but the engine’s power output must rise to maintain that speed.

If your seasonal deadline requires a higher speed, recalculate. A tractor that works fine at 12 kilometers per hour may struggle at 18. Choose the speed that meets your deadline, then size the engine for that. Do not compromise on speed if it means the tractor works at the edge of its capacity.

Check the implement’s speed range. Some implements have a minimum and maximum working speed. If you choose a speed above the maximum, the implement may not work correctly. If you choose a speed below the minimum, the implement may not penetrate the soil properly. Work within the implement’s specified speed range. The power calculation must be done at a speed within this range.

Step 6: Apply a Safety Margin

Add a margin to the total calculated power. A common practice is to add 10 to 20 percent. This covers variations in soil, implement wear, and operator technique. It also helps the engine operate in its efficient torque band rather than at the red line.

Without a margin, the tractor will stall when conditions worsen slightly. With a margin, it maintains speed and reduces stress on the drivetrain. Do not overdo it. A 40 percent margin wastes fuel and adds cost without benefit. 10 to 20 percent is the practical range for most field operations.

Consider the implement’s age. A worn implement may require more power than a new one. If you are buying a used implement, add a larger margin. The cutting edges may be dull, and the bearings may be loose. A new implement on a new tractor requires less margin than a worn implement on an older tractor.

Step 7: Verify the Engine Curve, Not Just Peak Horsepower

Horsepower ratings are often given at a specific engine speed. The engine’s useful power varies across the RPM range. A tractor with high peak horsepower may have low torque at low RPM, making it sluggish under load.

Check the engine curve. Look at the power available at the speed you will operate. If the implement requires high torque at low speed, a higher-peak-horsepower engine may not help. Match the curve to the work. A diesel engine with a flat torque curve is generally better suited for heavy pulls than one with a narrow torque peak.

The engine curve shows horsepower and torque against RPM. Find the RPM at which your target implement speed occurs. Look at the power output at that specific RPM. If the power drops significantly at that speed, the tractor will not maintain speed under load. A tractor with a broad torque band will maintain speed even when the engine speed drops slightly under heavy load. This is the key feature for heavy field work.

Step 8: Match the Final Number to Available Models

Once you have your required horsepower, compare it to available tractors. Do not buy the smallest tractor that meets the number. Look for the next size up if the options are close. This gives you more operational flexibility.

Check the implement’s PTO speed requirement against the tractor’s PTO. If the implement needs a specific PTO speed, the tractor must match it. Mismatched PTO speeds can cause damage or poor performance. This is a separate check from horsepower, but it must align. Most standard PTO speeds are 540 RPM and 1000 RPM. Some implements require 550 RPM or 825 RPM. If your implement requires a non-standard speed, you may need a tractor with that specific PTO, or you may need a reducer or multiplier. Check the implement’s manual for the required PTO speed.

Also check the implement’s hitch category. The tractor’s drawbar must match the implement’s hitch category. A Category 4 implement requires a Category 4 drawbar. A Category 5 implement requires a Category 5 drawbar. Do not attempt to adapt a lower category drawbar to a higher category implement. The pin and seat dimensions are different. A mismatch can cause the implement to detach or damage the drawbar.

Common Mistakes in Tractor Horsepower Matching

The most frequent error is relying on the implement’s recommended tractor size without adjusting for your actual field condition. The recommendation assumes average conditions. Your field may not be average. If your field is heavy clay, the recommended tractor size may be too small. If your field is sandy, the recommended size may be too large, leading to unnecessary fuel costs.

Another mistake is ignoring PTO demand. A tractor may have enough drawbar horsepower but not enough PTO torque. The engine will stall when the implement starts. This is especially common with heavy rotary equipment. Check the PTO torque rating of the tractor at the PTO speed. Compare it to the implement’s PTO torque requirement. Ensure the tractor has at least 10 percent more PTO torque than the implement requires.

A third mistake is overestimating the benefit of a larger tractor. A 300 horsepower tractor will not work twice as fast as a 150 horsepower tractor in the same implement. The implement’s resistance limits the speed gain. Buy the size that meets the load, not the size that feels impressive. A larger tractor may consume more fuel and wear out the implement faster if the implement is not designed for the higher torque.

A fourth mistake is not checking the engine curve. Two tractors with the same peak horsepower can perform very differently under load. The one with a broader torque band will handle the work better. Look at the torque at the operating RPM, not just the peak horsepower at the red line. A tractor with a flat torque curve will maintain speed under heavy load better than a tractor with a narrow torque peak.

Final Verification: Test in the Field

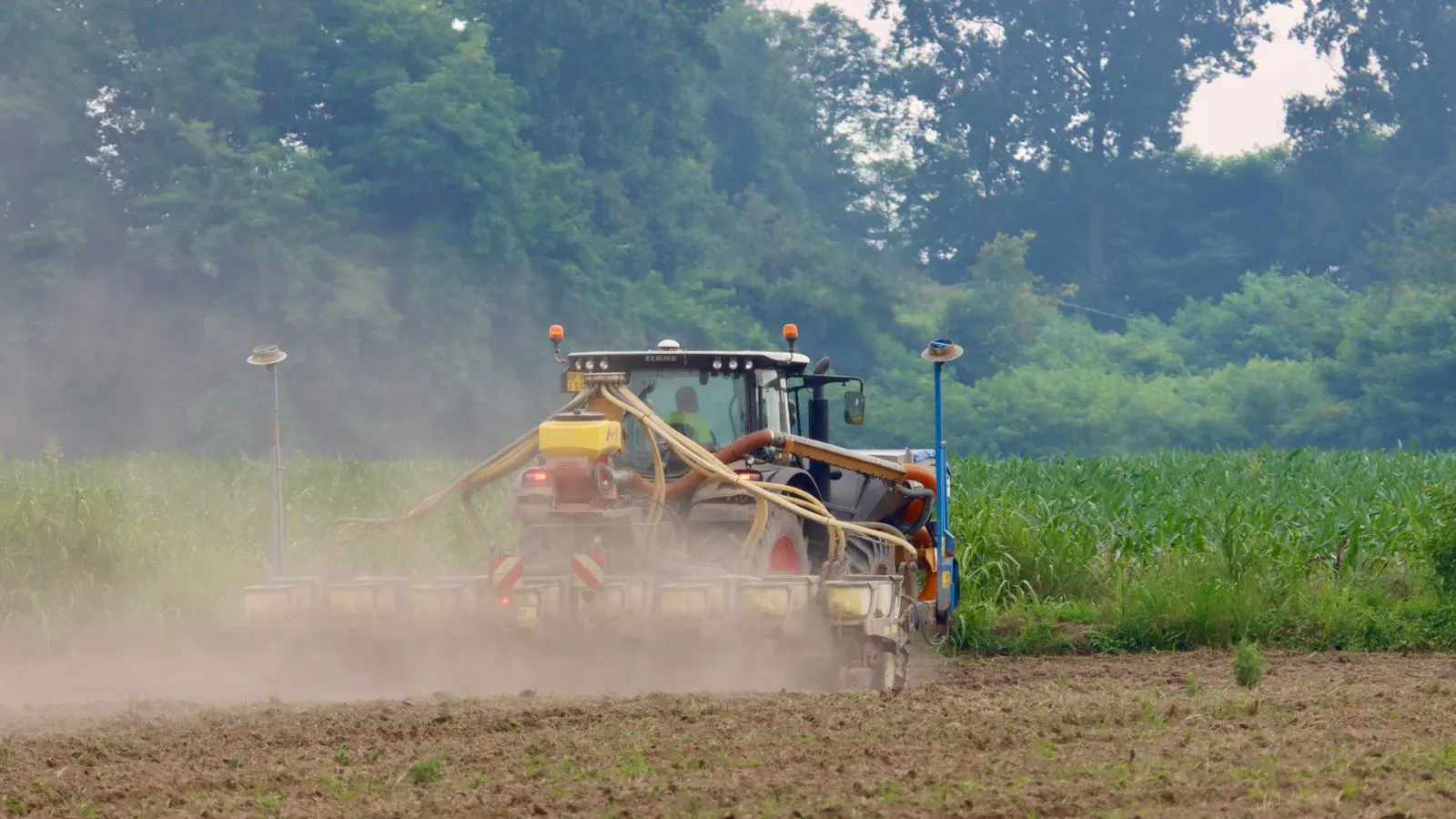

Run the tractor with the implement in the actual field. Start at a low speed. Feel for stalling or excessive RPM drop. Increase speed to your target. Check that the engine stays in its efficient range and that the implement moves smoothly.

If the tractor struggles, reduce speed or implement width. Do not ignore the struggle. A tractor working at the edge of its capacity will wear out faster and may stall during critical operations. If it runs easily with a margin, the match is correct.

Listen to the engine. A healthy engine under load should sound steady. A struggling engine will sound rough and the RPM will drop significantly when the implement hits a hard spot. If the RPM drops below the idle speed, the engine will stall. This indicates that the tractor does not have enough power for the work.

Check the temperature. If the engine temperature rises quickly, the engine may be working too hard. If the hydraulic temperature rises quickly, the hydraulic system may be overloaded. Use the temperature gauges to monitor the load. A tractor with a proper match will run at a stable temperature under load. If the temperature rises, reduce the speed or the implement width until the temperature stabilizes.
